LG956 Front Wheel Loader 5ton Capacity SDLG Machinery

The SDLG LG956L is a versatile and powerful wheel loader produced by SDLG (Shandong Lingong Construction Machinery Co., Ltd.), a subsidiary of Volvo Construction Equipment. Known for its reliability and cost-effectiveness, this wheel loader is widely used in construction, mining, and other heavy-duty applications.

SDLG LG956L Wheel Loader Key Specifications

Engine:

• Model: Weichai WD10G220E23 or similar (depending on market).
• Power Output: 162 kW (220 HP) at 2,200 rpm.
• Engine Type: Turbocharged, 6-cylinder diesel engine.
• Emissions Compliance: Tier 2 or Tier 3 (depending on production year and market).

Operating Weight:

• Approx. 16,900 kg.

Bucket:

• Bucket Capacity: 3.0 m³ (standard configuration).
• Bucket Width: Approx. 3,000 mm.
• Dumping Height: Approx. 3,100 mm (at full lift).
• Dumping Reach: Approx. 1,100 mm (at full lift).

Performance:

• Rated Load Capacity: 5,000 kg.
• Breakout Force: Approx. 175 kN.
• Max Travel Speed:
  • Forward: Approx. 38 km/h.
  • Reverse: Approx. 17 km/h.
• Gradeability: Up to 30% under ideal conditions.

Dimensions:

• Overall Length (with bucket): Approx. 8,070 mm.
• Overall Width: Approx. 3,030 mm.
• Overall Height: Approx. 3,350 mm.
• Wheelbase: Approx. 3,200 mm.
• Ground Clearance: Approx. 450 mm.

Hydraulic System:

• Hydraulic Flow Rate: Approx. 210 L/min.
• System Pressure: Approx. 18 MPa.
• Pump Type: Gear pump for efficient hydraulic operations.

Transmission:

• Type: Fixed shaft power shift transmission.
• Forward Gears: 4 speeds.
• Reverse Gears: 2 speeds.
• Axle: Heavy-duty axles designed for durability in tough conditions.

Fuel and Fluid Capacities:

• Fuel Tank Capacity: Approx. 300 liters.
• Hydraulic Oil Tank Capacity: Approx. 210 liters.
• Engine Oil Capacity: Approx. 20 liters.
• Cooling System Capacity: Approx. 40 liters.

Tires:

• Standard Size: 23.5-25.

Cabin:

• Operator Comfort: Spacious cabin with ergonomic controls and good visibility.
• Air Conditioning: Standard in most models for operator comfort in all climates.
• Noise Level: Designed to minimize noise and vibration for better operator comfort.

Features of the SDLG LG956L:

1. Durable Design: Built to handle tough working environments with a robust structure and reliable components.
2. Efficient Hydraulics: Precise and responsive hydraulic system for smooth operation and improved productivity.
3. Powerful Engine: Reliable Weichai engine provides ample power for heavy lifting and fast cycles.
4. Ease of Maintenance: Centralized lubrication points and easy access to key components reduce downtime.
5. Enhanced Safety: Equipped with ROPS/FOPS-certified cabin for operator protection.
6. Fuel Efficiency: Optimized engine and hydraulic system for reduced fuel consumption.

Applications:

• Construction: Earthmoving, material handling, and site preparation.
• Mining: Loading and hauling materials.
• Agriculture: Handling grain, fertilizer, and other bulk materials.
• Infrastructure: Road construction and maintenance.

The SDLG LG956L is an excellent choice for businesses looking for a reliable and cost-effective wheel loader for demanding operations. Its combination of power, efficiency, and durability ensures high productivity and low operating costs.

5 ton capacity Front Wheel loader

high quality Front Wheel loader

SDLG LG956 Front Wheel loader

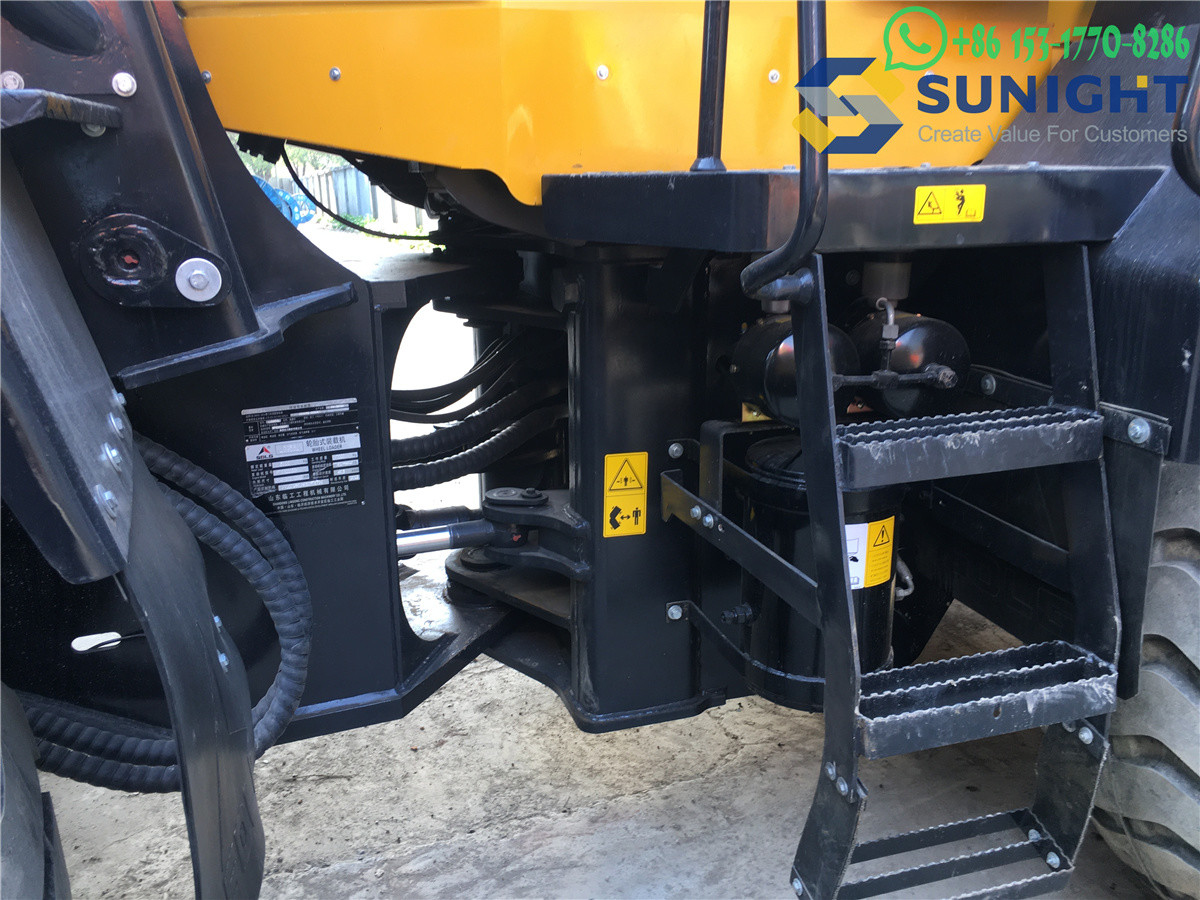

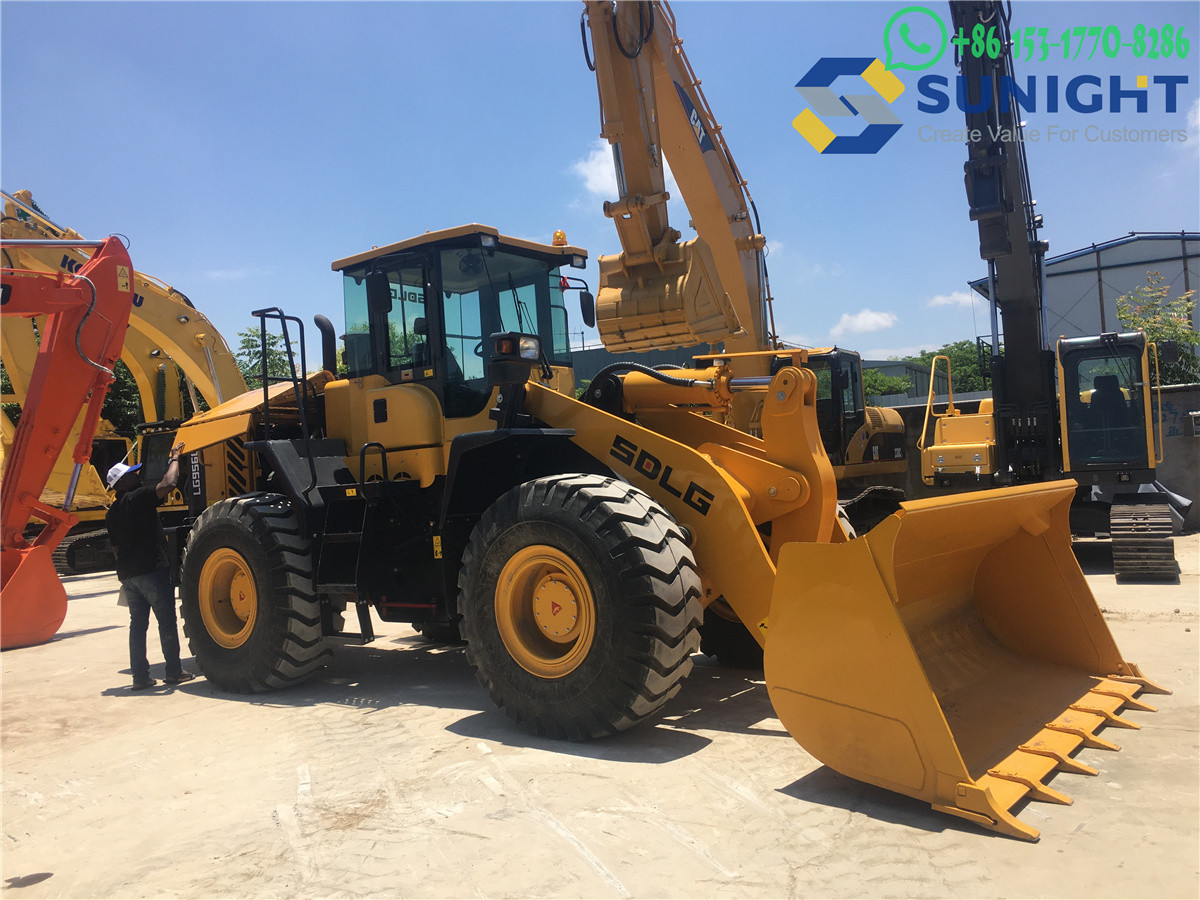

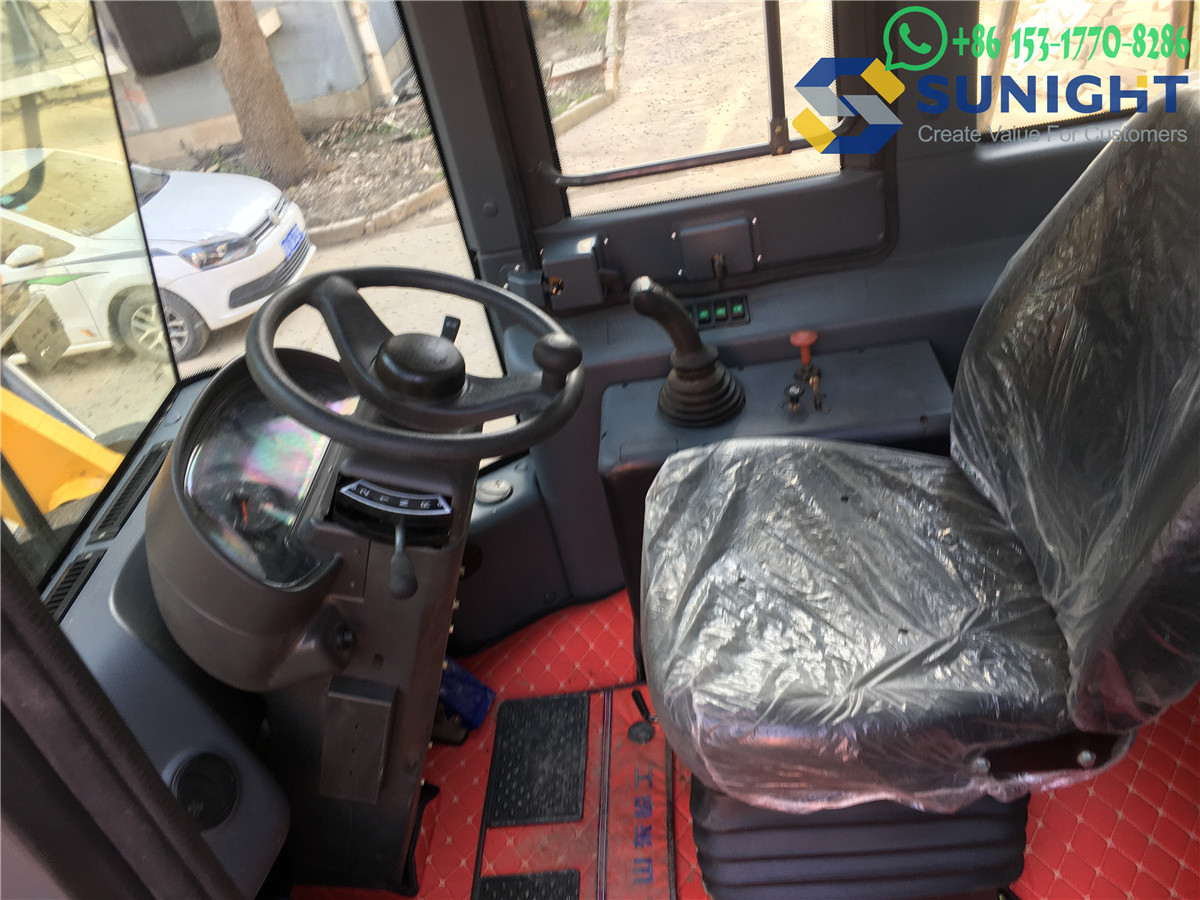

LG956 Front Wheel Loader 5ton Capacity SDLG Machinery Images
